Sensors DroneCAN Airspeed Sensor - DLVR
High Precision DroneCAN Airspeed Sensor - DLVR
From $7.99
Sensor Type
Pitot Tube Type
Thông tin lựa chọn
L10D / PT40 Pitot Tube
Phiên bản
USD 109.00
- Mã sản phẩm
- 19013
Mua ngay trên Shopee
Bảo hành (nếu có, ví dụ: linh kiện lỗi đổi trong 3 ngày).
Cam kết chính hãng, giao hàng nhanh.
Thông tin chi tiết sản phẩm
Overview
The Holybro DroneCAN Airspeed là phép đo chênh lệch áp suất cấp công nghiệp module được thiết kế để đo airspeed chính xác trong nhiều UAVs khác nhau, bao gồm cả mặt phẳng, VTOLs và other phương tiện. Equipped với theDLVRDigital Pressure Sensor và đang chạy ArduPilot AP-Periph Firmware, module này đảm bảo dữ liệu tốc độ bay chính xác và đáng tin cậy trong các điều kiện bay khác nhau.
Features
- Wide Pressure Range: Supports tối đa2500 Pa và 226.8 km/h (141 mph) đo tốc độ bay for DLVR-L10D. Or 5000 Pa và 320 km/h (200 mph) for DLVR-L20D.
- High-PrecisionDLVRSensor: Based vào ALLSENSORS® DLVR vớiCông nghệ CoBeam, pro mang lại độ chính xác cao và độ trôi ở nhiệt độ thấp.
- High Accuracy:Achieves độ chính xác cao hơn 1%trong một phạm vi nhiệt độ rộng,đảm bảo đáng tin cậyvà đọc chính xác trong các ứng dụng đòi hỏi khắt khe.
- DroneCAN Protocol: Compatible với cả hai nền tảng PX4 và ArduPilot.
- Aluminum Shell:Durable và kết cấu đáng tin cậy
- Software chuyển đổi để kháng cự việc chấm dứt CAN
Specifications
- MCU: STM32G473CE, 170 MHz, 128KB RAM, 512KB Flash
- Sensor:DLVR-L10D/L20D
- Pressure Range: 2500 Pa (L10D) hoặc 5000 Pa (L20D)
- Burst Pressure: 75 kPa (L10D) hoặc 125kPa (L20D)
- Airspeed Measurement: 0-226.8 kmph (L10D) hoặc 0-320kph (L20D)
- Accuracy:<1.0% Error
- Firmware:AP-Periph DroneCAN
- Communication Protocol: DroneCAN
- Compatible Flight Controllers: Any flight controller với giao diện CANđang chạychương trình cơ sở PX4 hoặc Ardupilot
- Working Voltage: 4.75~5.25V
- Current Consumption: ~~TERM_2__
- Dimensions: 29 x 35.5 x 16.5 mm (module), 91.5 x 28 x 30 mm (Pitot ống)
- Weight: 38.3g (Includes Pitot ống và ống)
- Operating Temperature: -20 đến 85oC
Airspeed Sensor Comparison Chart
| DLVR | AS1318C | MS4525DO | MS5525DSO | ||
|---|---|---|---|---|---|
| Model Number | DLVR-L10D | DLVR-L20D | AS1318C-001PD5AI-DSD | MS4525DO-DS5AI001DP | MS5525DSO-DB001DS |
| Standard Range (psi) | 0.363 | 0.725 | 1 | 1 | 1 |
| Burst Range (psi) | 7.25 | 10 | 10 | 20 | |
| Total Error Band | ±0.3%Span | ±1%FSS | ±1%FSS | ±2.5%FSS | |
| Temperature Accuracy (°C) | 2 | 1.5 | 1.5 | 1.5 | |
| Compensated Temperature (°C) | 0~70 | 0~60 | -10~85 | 0~85 | |
| Đo lường Maximum Air Speed (kph) | 226.8 | 320 | 360 | ||
| Pressure Resolution (bit) | 14 | 14 | 14 | 24 | |
| Temperature Resolution (bit) | 11 | 11 | 11 | 24 | |
| Update Time (ms) | 0.4~9.5 | 0.5 | 0.5 | 0.48~9.04 | |
| Operating Temperature (°C) | -25~85 | -20~85 | -25~105 | -40~125 | |
| Working Voltage (V) | 4.75~5.25 | ||||
| Current Consumption (mA) | ~100 | ~3 | ~3 | ~1.4 | |
| Sensor Module Weight (g) | 17.4 | 4.1 | 4.1 | 2.6 | |
| Dimensions (mm) | 29 x 35.5 x 16.5 | 17 x 23 x 13 | |||
| Interface | DroneCAN | I2C | |||
| Address | DroneCAN Auto Config | 0x28H | 0x28H | 0x76 | |
| Compatible Flight Control Firmware | PX4&Ardupilot | ||||
Dimensions
Pinout
SKU19012 Package Includes:
- 1x DroneCAN Airspeed Sensor-DLVR
- 1x Rubber ống 100cm
- 1x GH 4P Cable

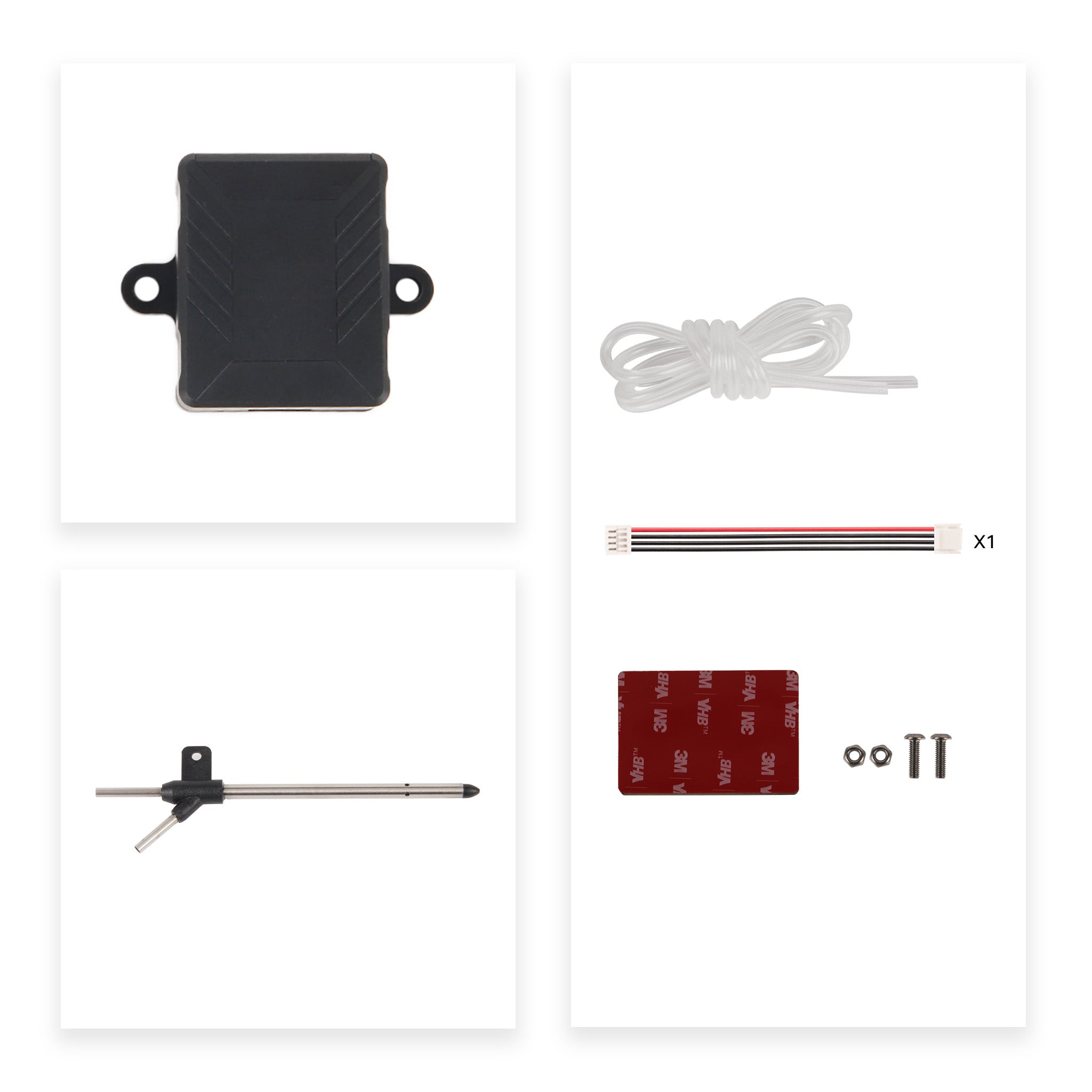

SKU19013 Package Includes:
- 1x DroneCAN Airspeed Sensor-DLVR
- 1x PT40 Pitot Tube
- 1x Rubber ống 100cm
- 1x GH 4P Cable
SKU19014 Package Includes:
- 1x DroneCAN Airspeed Sensor-DLVR
- 1x PT60 Pitot Tube
- 1x Rubber ống 100cm
- 1x GH 4P Cable
Quick Start Guide:
https://docs.holybro.com/peripherals/dronecan-airspeed/quick-start-guide
